Large screen, marking a new milestone for
mainstream experience
7-inch IPS full-view LCD touch screen, for better user experience
Built-in card reader, well designed for compact space
Speedy and accurate recognition, clearer
imaging for details with high resolution
30,000 faces, 100,000 logs, 0.3s high-speed recognition, 99.99% highly accurate recognition rate
Anti-backlight, suitable for diversified
application environments
IP65 protection and -40° low temperature running, providing excellent durability for outdoor environments
Product Parameters
Capacity
30,000
30,000
Max. 100,000
Interfaces
TCP/IP, WIFI, Bluetooth
Relay, Wiegand input/output, RS232, RS485, Door sensor, Exit button, 2 Type-A USB, MIC
Functions
Live detection
Face, Card, Face + Card, Card + Password, User ID + Password
Online, USB
Ustar, Ustar Cloud, Ustar Access, Ustar Mobile, Web Server
Hardware Specifications
1GB RAM + 8GB ROM
Dual-core ARM Cortex-A7@900MHz, Linux
1.2 Tops
7-inch TN LCD touch screen
IR, GB dual-lens camera, Recognition distance (0.3m-2m)
Standard EM & MIFARE Card, NFC
General
-40°C~60°C
-20°C~60°C
10%~90%
IP65
DC 12V/2A
Max. 15W

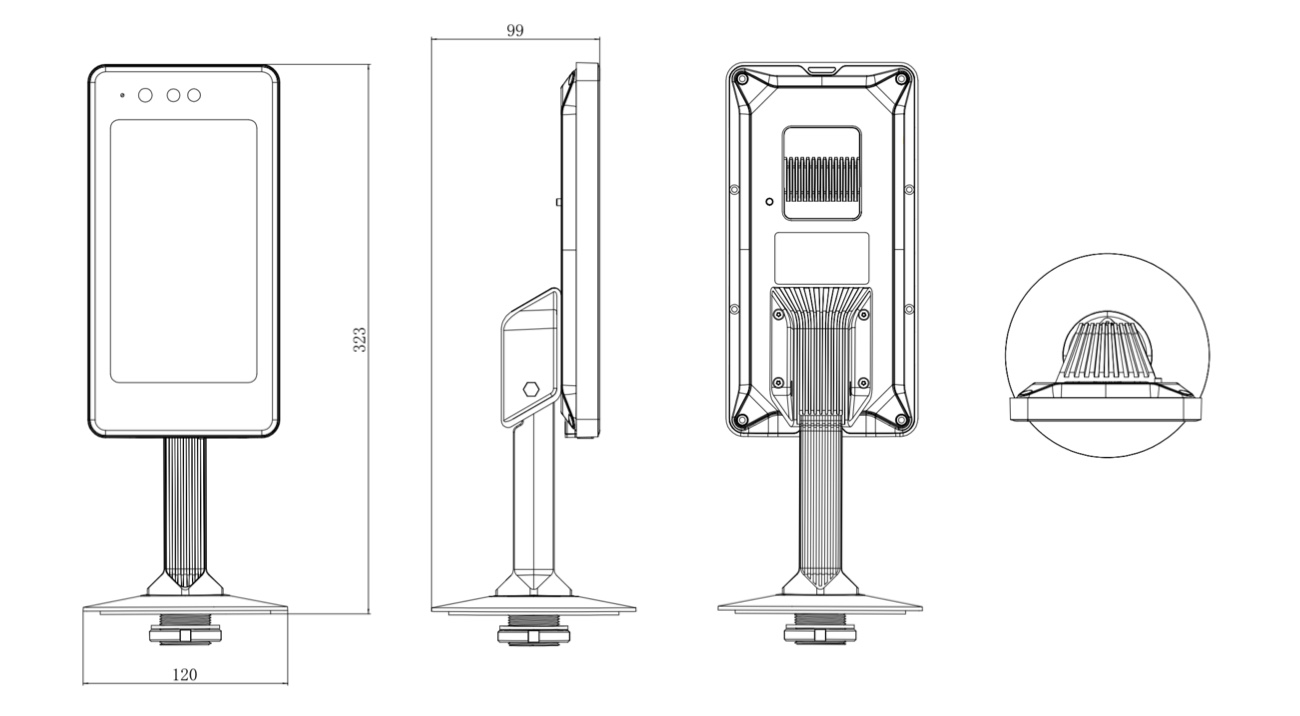

323 mm x 120 mm x 99 mm
CE. FCC
