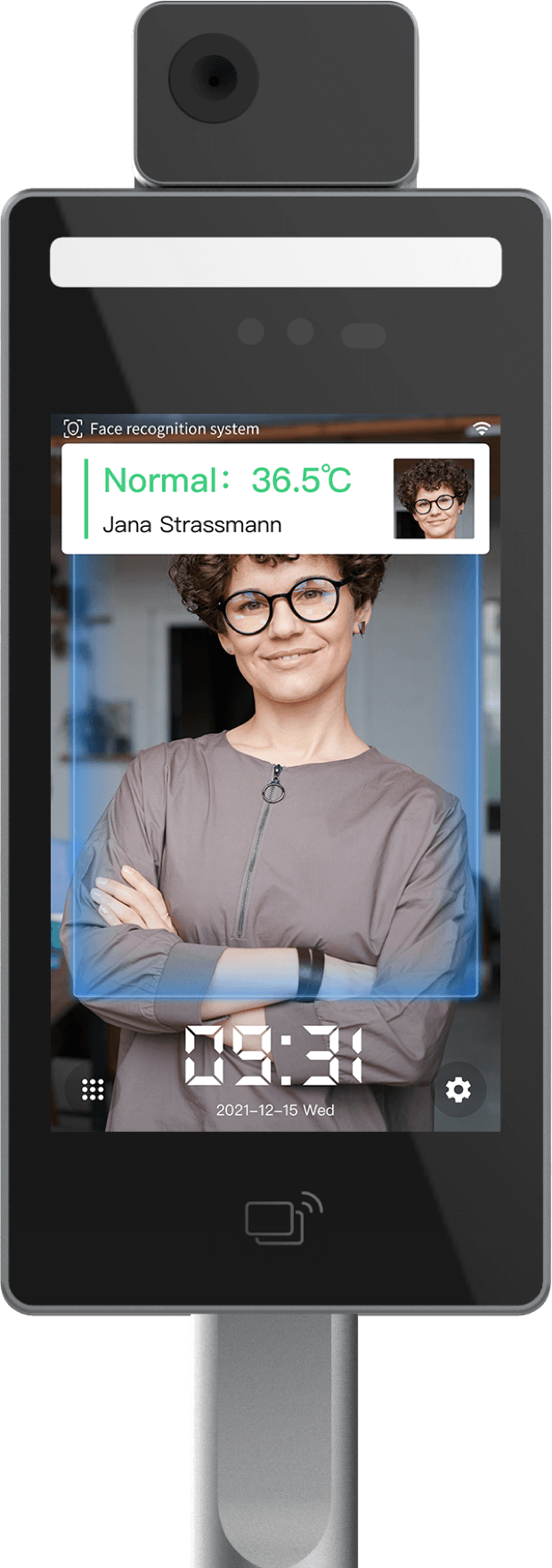

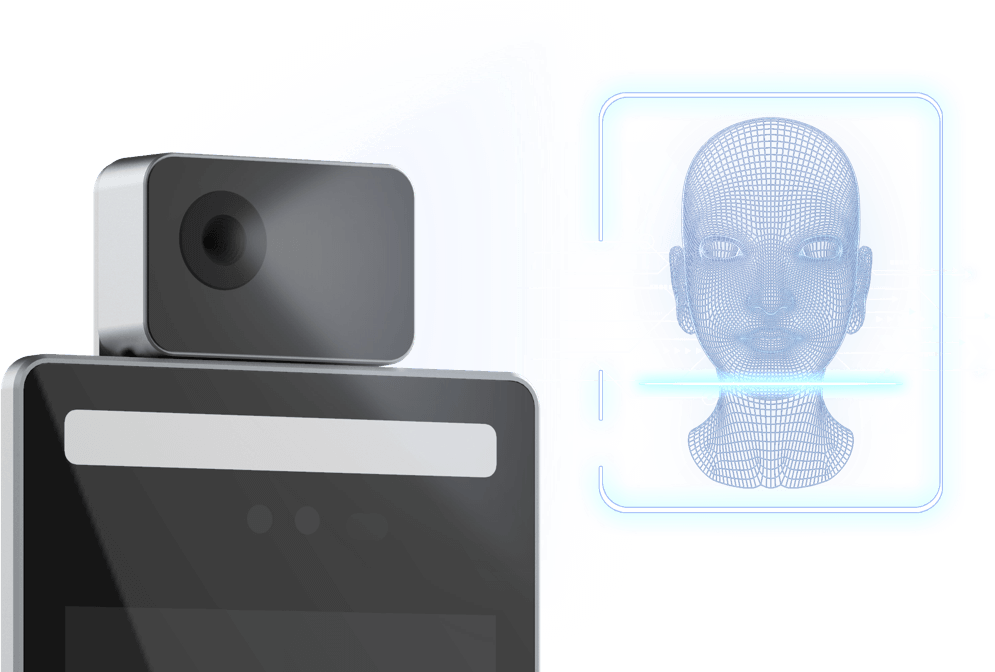

Quick Thermometry & Passing, to Guarantee Safety
Integrated with thermo-sensor of known brand,
quicker thermometry, higher accuracy & more
comprehensive protection
Vast Database, Stores 100-thousand Face
Images for You
Equipped with 100-thousand face database, easily handle with huge flow of people
Product Parameters
General Parameters
0℃~50℃
-10℃~60℃
20%~85%
Max. 15W
DC 12V/2A (in different standards)
Indoor use, avoid interference of heat source
Display
8-inch IPS all-sight LCD touch screen
1280 * 800
RGB Camera
1/2.7" 2MP COMS HD WDR camera
120dB
1932 * 1092
74.38°
Electronic rolling shutter
Auto
Auto
Auto
f=4.35mm, Aperture F2.0
Infrared Camera
1/2.7" 2MP CMOS HD WDR camera
120dB
1932 * 1092
67.57°
Electronic rolling shutter
Auto
Auto
Auto
f=4.2mm, Aperture F1.6
System Parameters
Linux
Dual-core ARM Cortex-A7@ 900MHz
1GB RAM, 8GB ROM
Interfaces
RS-232, Wiegand26/34 output, Relay output, TTL output, Audio output, USB Type A
Communication Mode
RJ45, 2.4GHz Wi-Fi
Functions
Face & mask detection (Face + Temp measurement)
Up to 99.99%
30cm~150cm
30℃~45℃
0.5℃
100-thousand face database
Standard MIFARE Card
1 million pieces of recognition records
Live detection: 0.3-1.5m; Non-live: 0.3-3m
Supports
Supports
Cloud, LAN
