Upgraded Thermometry Experience
Integrate the world famous brand thermo-sensor
With higher accuracy & quicker speed

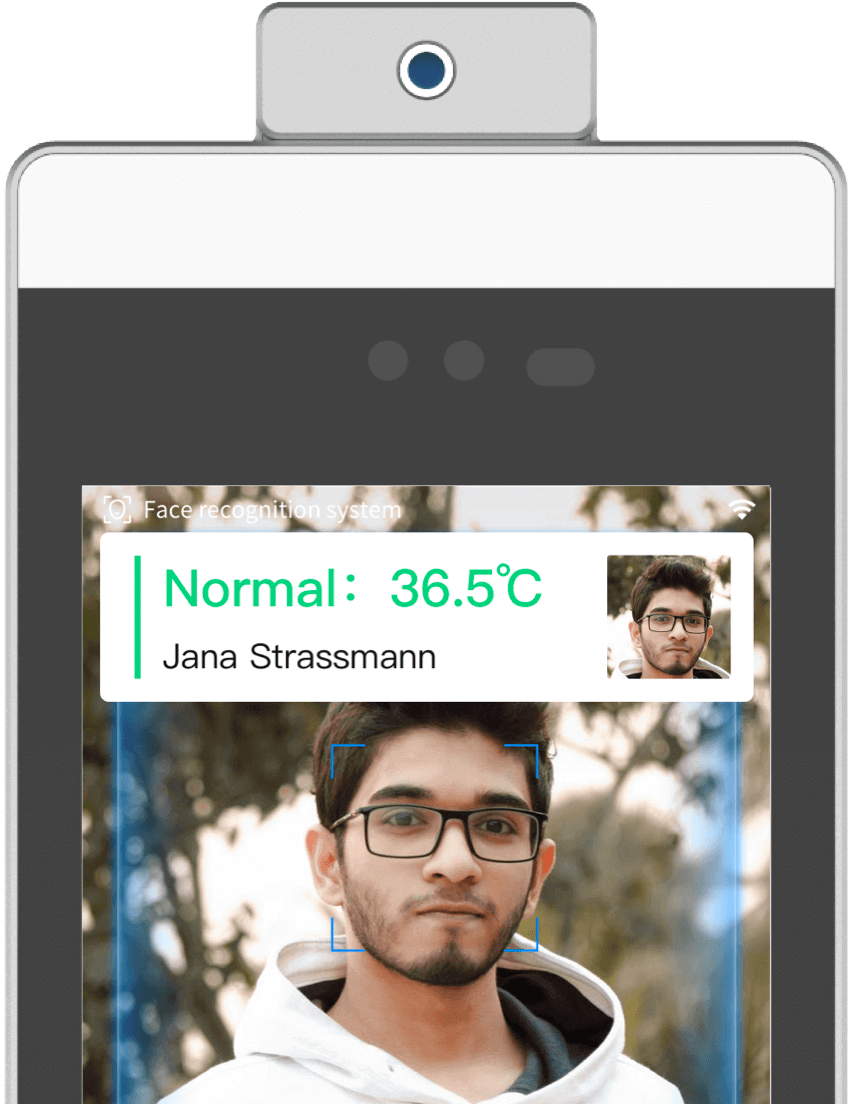

Binocular Camera
+Turnstile-type
Infrared + RGB Dual-camera
Live face detection, Anti-backlight
Up to 99% recognition accuracy
For turnstiles, provide more efficient passing
Product Parameters
General Parameters
0℃~45℃
-10℃~60℃
20%~85%
Max. 15W
DC 12V/2A (in different standards)
Indoor use, avoid direct heat source and sunlight
Display
8-inch IPS all-sight LCD touch screen
1280 * 800
RGB Camera
1/2.7" 2MP COMS HD WDR camera
120dB
1932 * 1092
74.38°
Electronic rolling shutter
Auto
Auto
Auto
f=4.35mm, Aperture F2.0
Infrared Camera
1/2.7" 2MP CMOS HD WDR camera
120dB
1932 * 1092
67.57°
Electronic rolling shutter
Auto
Auto
Auto
f=4.2mm, Aperture F1.6
System Parameters
Linux
Dual-core ARM Cortex-A7@ 900MHz
1GB RAM, 8GB ROM
Interfaces
RS-232 (occupied by thermometer module), Wiegand26/34 output, Relay output, TTL output, Audio output, USB Type A
Communication Mode
Wi-Fi, RJ45
Functions
Face & mask detection (Face + Temp measurement)
Up to 99.99%
30~50cm
30℃~43℃
±0.2℃
100-thousand face database
Standard MIFARE Card
1 million pieces of recognition records
Live detection: 0.3-1.5m; Non-live: 0.3-3m
Supports
Supports
Cloud, LAN
